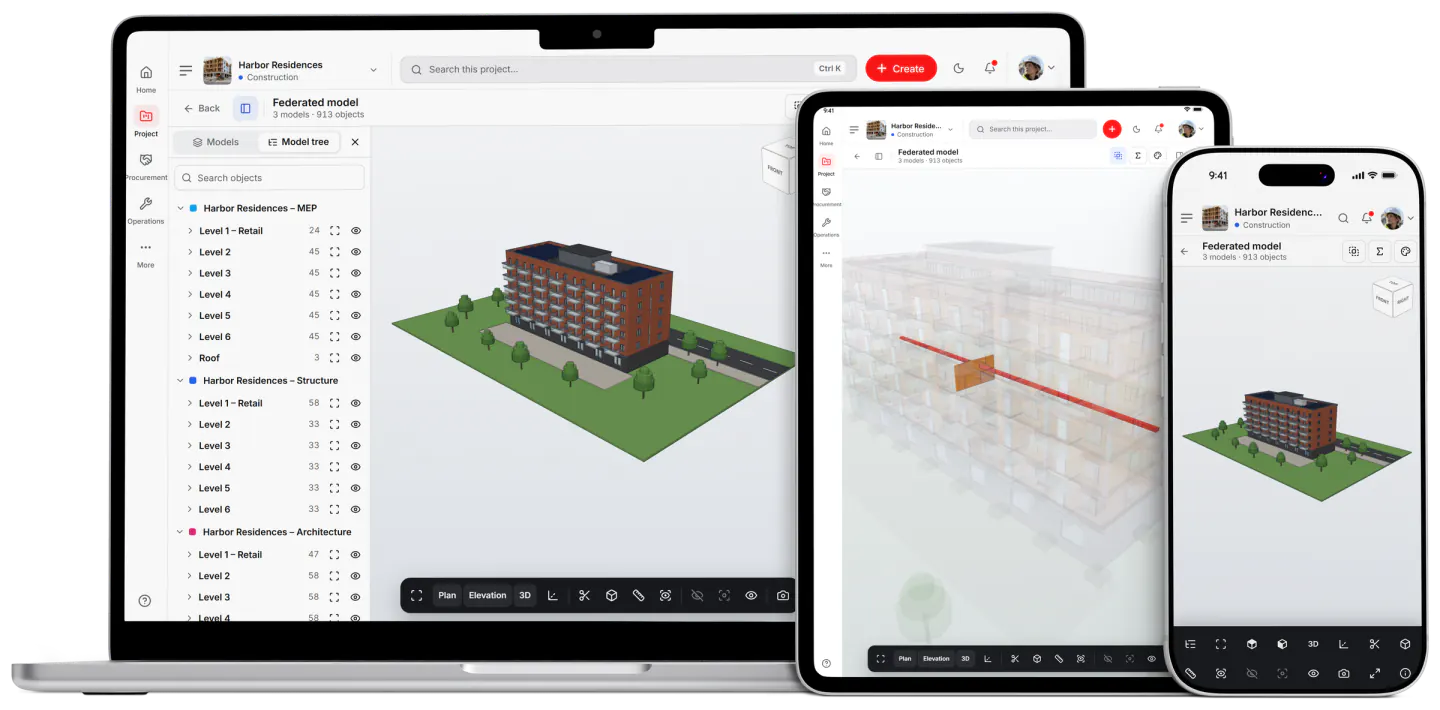

BIM & 3D
Upload an IFC file and open the model in your browser, with nothing to install. Browse the model tree, read object properties, cut sections, and measure. Multiple models open together as a federated model, where you can run clash detection.
30 days free · No long-term contract.

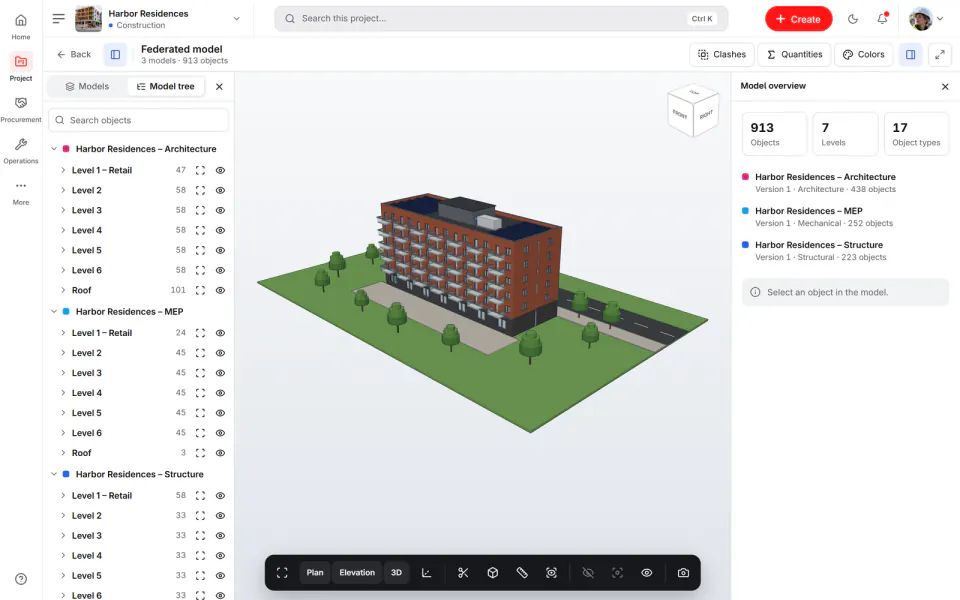

The model in the browser
IFC 2x3, IFC 4, and IFC 4.3 files are read and become a 3D model with a model tree by level and object type. Select an object to see its attributes, type, materials, properties, and quantities.
Cut, measure, and color-code
Place a section or a section box, measure distances and areas with snapping to corners and edges, and color-code by model, level, or object type. The view is saved as an image at up to 8K.
Coordinate and check
Open up to twelve models in one scene and run clash detection between selected models and object types. The result lists the clashes with their overlap in millimeters and exports as CSV.
From model to action

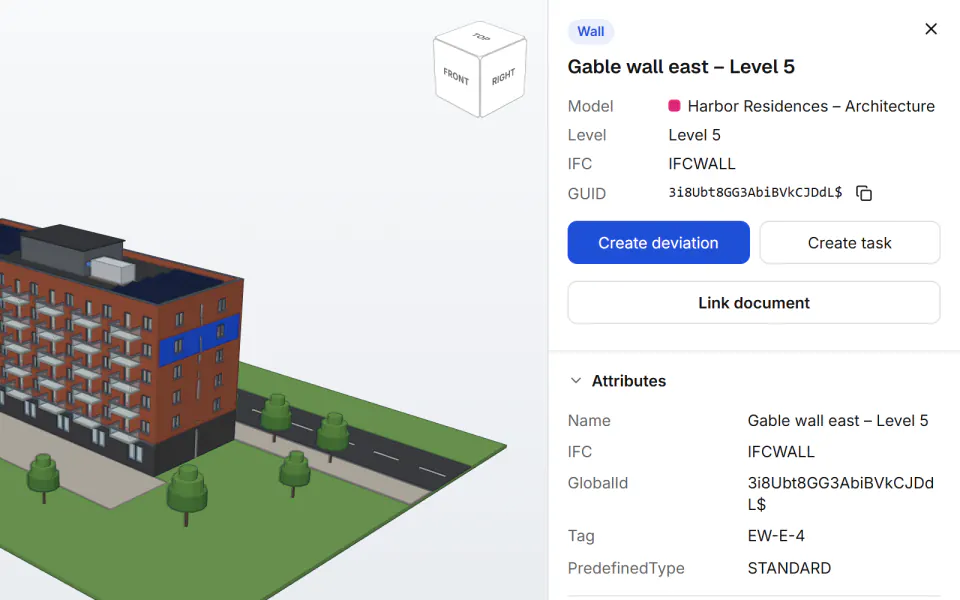

Log what you see in the model as an issue
Select an object and create an NCR or an issue with a responsible person, or link a document to it. The record carries the view with it, so the next person opens the model with the same camera, selection, and section.
- IFC files up to 512 MB
- X-ray, hide, and isolate objects
- An NCR straight from a clash
IFC files in IFC 2x3, IFC 4, and IFC 4.3, up to 512 MB. The model is built in your own browser, so there’s nothing to install.
Browse the model tree by level and object type, see the objects’ attributes, materials, properties, and quantities, place a section or a section box, measure distances and areas, and color-code by model, level, or object type.
Yes. Up to twelve models open in the same scene, each positioned where its own coordinates place it.
Yes. Run it whenever you like, between selected models and object types and with a tolerance in millimeters. The result lists the clashes, a clash can become an NCR, and the report exports as CSV.
Select an object and create an NCR or an issue with a responsible person, or link a document to it. The record carries the view with it, so the next person opens the model with the same camera, selection, and section.
